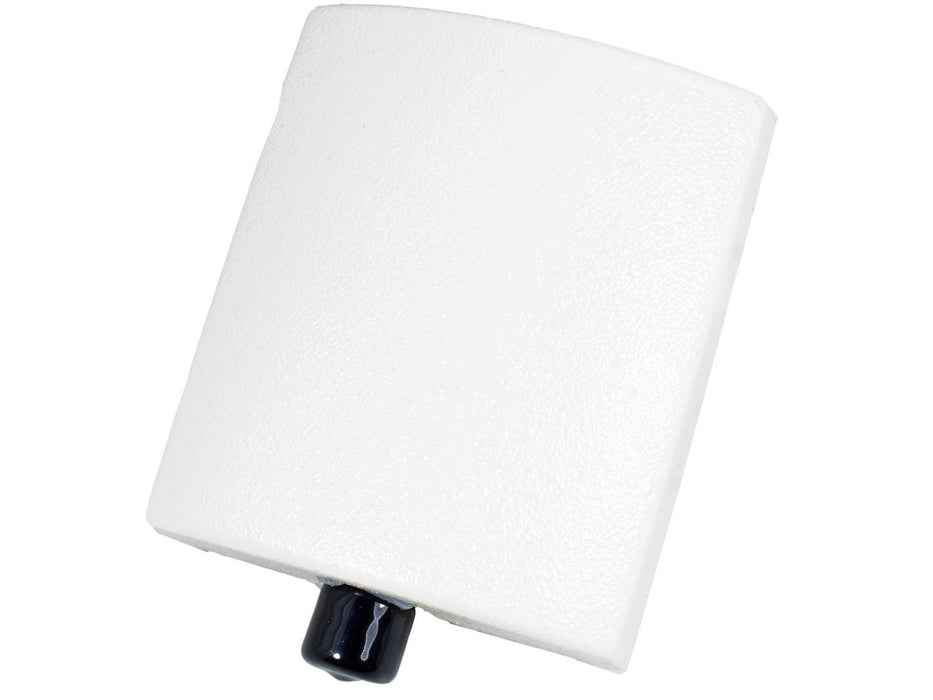

10dB 2.4GHz Directional High Gain Antenna with 1m Cable and Adaptors

Product Code: 10DB24GHZANT
Add optional extras
This 2.4GHz directional antenna is a fantastic way to greatly increase the range of wireless CCTV applications.

This 2.4GHz directional antenna is a fantastic way to greatly increase the range of most wireless CCTV systems. the device boosts a transmitter or receiver's gain by 10dB, massively increasing its power. What's more, as the unit only sends the signal in a focussed 70-degree wide arc, it can achieve distances much greater than similar omnidirectional models. The antenna mounts flat to an external wall, so there's no need to set up a pole to hold it. We have also included a 1m cable and a complete set of connectors, so should work right out of the box with all of our standalone transmitters and receivers.

This antenna will massively boost the range of wireless systems, but the huge number of factors impacting wireless performance means we cannot provide specific estimates for range.

What's in the box?
  • 1x 10dB High Gain Antenna
  • 1x 1m Cable
  • Complete set of connectors

Increases signal range
Massively increases the distance possible with wireless CCTV, making it perfect for outdoor locations such as farms

Antenna only sends the signal in a 70-degree wide beam, meaning it focuses its power for more range

Flat Wall Mount
Built-in bracket lets you easily mount the antenna flat on an external wall

Use one or a pair
The antenna can be used on its own, connected to the transmitter, or paired with a second unit on the receiver to double the boosting effect

Easy Connectivity
Kit includes all the adaptors you need to connect it to our wireless transmitters and receivers

Frequency Range: 2.4-2.5GHz
Gain: 10dBi
Polarisation: Vertical
SWR: <1.5:1
Impedance: 50 Ohms
Connector: N Socket
Dimensions: 107x94x30mm
Weight: 320g
Working Temperature & Humidity: -40 to +50C 20-95%
