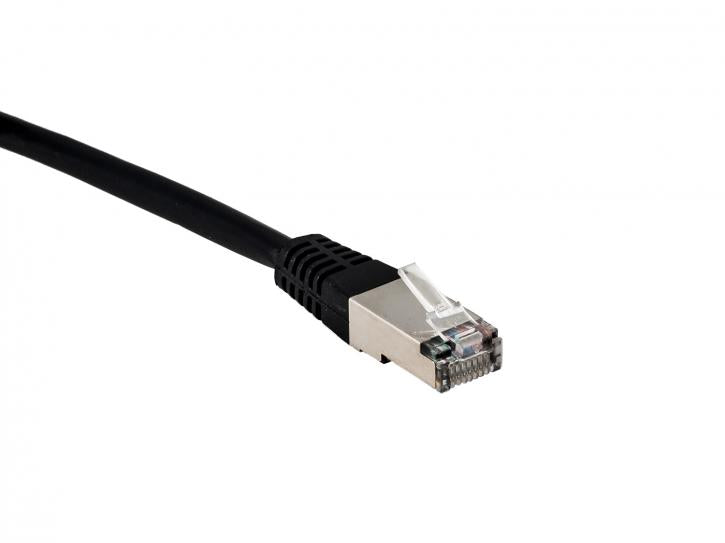

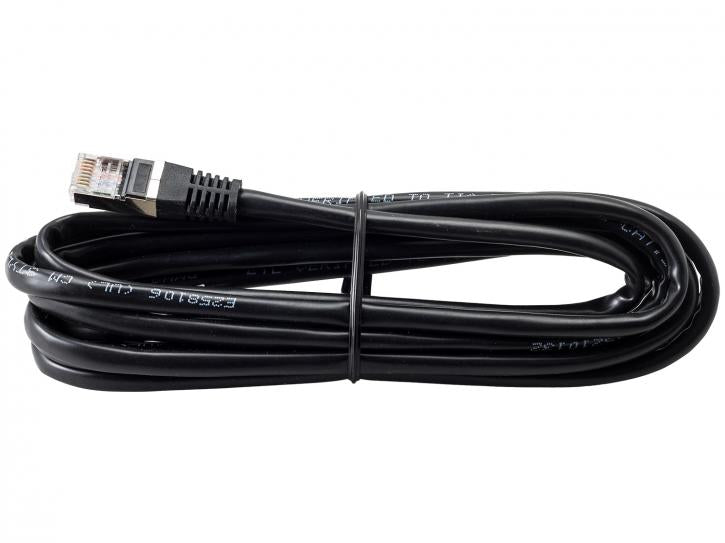

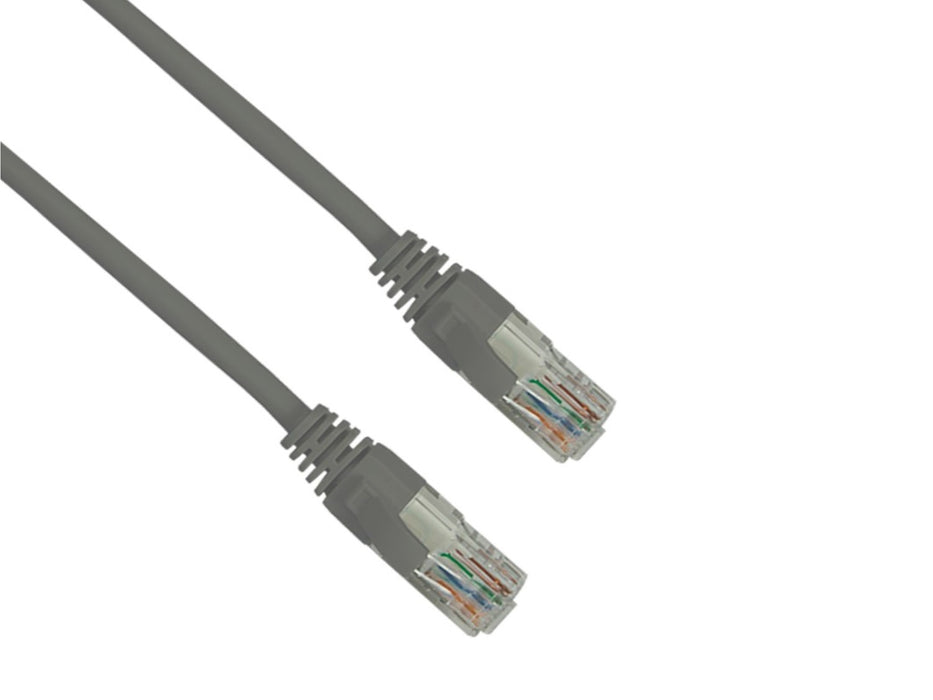

3m Cat 5e Ethernet Network Patch Cable
3m Cat 5e Ethernet Network Patch Cable

3m Cat 5e Ethernet Network Patch Cable

Product Code: 3MCAT5EG
£4.99
Add optional extras
Colour
  • 3m Patch Cable
  • The short cable is ideal for connecting together devices such as routers and network switches
  • RJ45 Connections
  • The cable is fitted with standard connectors, allowing wide compatibility with many network devices
  • Weather Resistant
  • The cable jacket is waterproof, allowing the main length of the cable to be run outside
What's in the box?
  • 1x 3m Cat 5e Ethernet cable

This short 3m Cat 5e ethernet cable is ideal for connecting devices such as NVRs and network-enabled DVRs to your router or network switch. The cable has standard RJ45 connectors for wide compatibility and is sealed in a waterproof jacket.

Wires: 8 circuits (4 twisted pairs)
Standard wire colours: Blue/blue-white orange/orange-white green/green-white and brown/brown-white
Solid wire: AWG 23/1
Materials: HDPE insulator PE jacket
Frequency: Maximum 250MHz
Operating temperature: -20°C to 75°C
DC-Loop resistance: 0.0658
Propagation speed: 0.64
Propagation delay: 4.80–5.30 ns/m
Delay skew: 100 MHz‚ 0.20 ns/m
Capacitance: f.f.s
Return loss (Min. at 250MHz): 15.6 dB
Attenuation (Min. at 250MHz): 39.4 dB
Standards: EIA/TIA 568 B.2 EN 50173-1 ISO/IEC 11801

  • 3m Patch Cable
  • The short cable is ideal for connecting together devices such as routers and network switches
  • RJ45 Connections
  • The cable is fitted with standard connectors, allowing wide compatibility with many network devices
  • Weather Resistant
  • The cable jacket is waterproof, allowing the main length of the cable to be run outside
What's in the box?
  • 1x 3m Cat 5e Ethernet cable

This short 3m Cat 5e ethernet cable is ideal for connecting devices such as NVRs and network-enabled DVRs to your router or network switch. The cable has standard RJ45 connectors for wide compatibility and is sealed in a waterproof jacket.

Wires: 8 circuits (4 twisted pairs)
Standard wire colours: Blue/blue-white orange/orange-white green/green-white and brown/brown-white
Solid wire: AWG 23/1
Materials: HDPE insulator PE jacket
Frequency: Maximum 250MHz
Operating temperature: -20°C to 75°C
DC-Loop resistance: 0.0658
Propagation speed: 0.64
Propagation delay: 4.80–5.30 ns/m
Delay skew: 100 MHz‚ 0.20 ns/m
Capacitance: f.f.s
Return loss (Min. at 250MHz): 15.6 dB
Attenuation (Min. at 250MHz): 39.4 dB
Standards: EIA/TIA 568 B.2 EN 50173-1 ISO/IEC 11801
