4 Camera Hikvision TVI CCTV System - 1080p HD with PoC DVR
What are the Benefits of TVI HD?
- Uncompressed HD Video
- TVI is a revolutionary new recording format for CCTV, that allows virtually uncompressed recording at resolutions simply not possible with traditional analogue cameras. Just check the screenshots and video for comparison to 700TVL cameras!
- Plug and Play Setup
- Unlike IP systems that need to be configured on your network, TVI kits simply connect together using standard coax cables. This combines the quality of HD with the easy setup of analogue and allows you to use existing RG59 wiring if you are upgrading a system
- Easy RG59 upgrade
- Use the drop-down menu at the top of the page to select the type of cables you need or leave them out if you are upgrading a system which already has RG59 wiring
- No Playback Delay
- With IP cameras over a network there is a slight delay in the video playback. TVI systems are wired directly to the recorder, meaning live playback is actually live
Camera Features
- 1080p HD Video
- Record and playback in full HD 1920x1080p resolution at 25fps giving you crisp footage full of vital details
- 20 Metres Night Vision
- Capture your subjects in even the darkest conditions with 20 Metres of Infra-red illumination
- Dome style CCTV camera
- The shape of the dome type cameras allow them to be placed less more subtly in a range of locations
- IP66 Rated Housing
- IP66 rated casing on cameras means they can be set up in a variety of outdoor locations
- Low Light Recording
- Capable of recording in conditions as dark as 0.005 Lux without using night vision
- Power-over-Coax
- Cameras draw power directly from the recorder over the RG59 cables, preventing the need for an external power supply
Recorder Features
- Full HD 1080p recording and playback
- Record extremely crisp images at 1920x1080p resolution and 25fps
- 4 Video channels & 1 Audio Channel
- Giving you upgrade and expansion options for any home or medium-sized business set up
- Multiple recording options
- With this cutting edge DVR you have a variety of recording triggering options including manual, scheduled, motion detection and more
- Remote Access your Recorder from anywhere
- Check in on your property any time on the fly on a mobile device - seamlessly compatible with iOS, Windows and Android platforms
- Customise your System
- Choose the right hard drive size and cable length for your system from the drop-down menus at the top of the page
What's in the box?
- 1x 4 Channel Turbo HD TVI DVR
- 1x Mains Power Supply for DVR
- 4x Turbo HD TVI Outdoor Dome Camera
- 1x USB Mouse
- 1x Remote Control
- 1x Manual and Software CD
TVI technology allows the CCTV cameras to send uncompressed full HD video down a simple RG59 coaxial cable. This provides amazingly clear CCTV images full of usable detail. It also means that, if you have an existing CCTV system with coaxial cables, you can upgrade your cameras and recorder without even having to run new wiring! The system uses Power-over-Coax (PoC), letting the cameras draw power from the record over the RG59 cable, and removing the need for additional power supplies.
You can select the length of cables you need for your 4 camera Hikvision CCTV system from the dropdown at the top of the page, or leave it blank if you already have cables and just want the cameras and recorder.

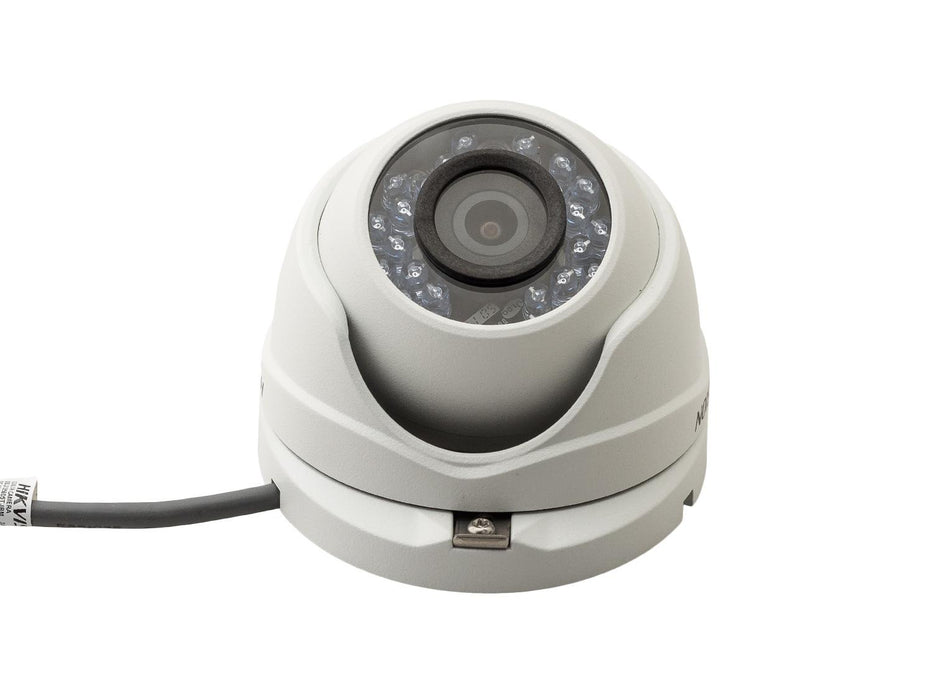

The cameras themselves are compact and discreet, but don't let that fool you- they pack a 20m night vision range for round the clock monitoring. The heavy-duty plastic casings are also IP66 rated, allowing them to be installed outdoors and exposed to the elements without any issues. The dome design makes them a great choice for applications like an office or retail security.
The included recorder is also made by Hikvision, boasting the standard suite of professional DVR features. These include full 1080p recording on all video channels, an HDMI output for connecting to a TV or monitor, and highly customisable recording options. These allow you to change motion detection or scheduling settings on a camera-by-camera basis. It can also be connected by an ethernet cable to your router and, once configured, allows secure remote access to watch your cameras live over the internet using a PC or smartphone.
Cameras
Image Sensor: 2 MP CMOS Image Sensor
Signal System: PAL / NTSC
Effective Pixels: 1920 x 1080
Min. Illumination: 0.005 Lux @(F1.2AGC ON) 0 Lux with IR
Shutter Time: 1/25(1/30)s to 1/50000s
Lens: 2.8mm
Angle of View: 82.6° (2.8mm)
Lens Mount: M12
Angle Adjustment: Pan: 0-360° Tilt: 0-90° Rotation: 0-360°
Day & Night: ICR
Synchronization: Internal synchronization
Video Frame Rate: 1080p@25fps / 1080p@30fps
HD Video Output: 1 Analog HD output
Scene: Indoor Outdoor Indoor1 LOW-LIGHT
Camera ID: On/off (15 characters position programmable)
AGC: Support
D/N Mode: Color / BW / EXT
White Balance: ATW AWC-SET Indoor Outdoor Manual
Privacy Mask: On/Off maximum 4 zones
Motion Detection: On/Off maximum 4 zones
BLC: Support
Working Temperature: -40°C - 60°C
Humidity: 90% or less (non-condensing)
Power Supply: 12 VDC
Power Consumption: Max. 3.6W
Weather Proof Ratings: IP66
IR Range: Up to 20m
Communication: Up the coax(need UTC controller)
Protocol: Pelco-C (Coaxitron)
Dimensions: 89.6 x 59.1mm (3.53 x 2.33")
Weight: 400g (0.88lb)
DVR
Analog and HD-TVI video input: 4-ch
BNC interface: (1.0Vp-p 75ohm)
Supported camera types: 720p @ 25fps 720p @ 30fps 720p @ 50fps 720p @ 60fps 1080p@ 15fps CVBS
IP video input: 2-ch up to 1080p resolution
Audio compression: G.711u G.726 G.711a G.722
Audio input: 1-ch RCA (2.0 Vp-p 1Kohm)
Two-way audio in: 1-ch RCA (2.0 Vp-p 1KΩ using the 1st channel of audio input)
HDMI / VGA output: 1920x1080 / 60 Hz, 1280x1024 / 60 Hz, 1280x720 / 60 Hz, 1024x768 / 60 Hz
Encoding resolution - Main stream: 1080p / 720p / VGA / WD1 / 4CIF / CIF
Encoding resolution - Sub-stream: WD1 (non-real-time) / 4CIF (non-real-time) / CIF / QCIF / QVGA
Frame rate - Main stream: 1/16 fps ~ Real time frame rate
Frame rate - Sub-stream: 1/16 fps ~ Real time frame rate
Video bitrate: 32 Kbps - 10 Mbps
Audio output: 1-ch RCA (Linear 1Kohm)
Audio bitrate: 64 Kbps
Dual-stream: Support
Stream type: Video Video & Audio
Synchronous playback: 4-ch
Playback resolution: 1080p / 720p / VGA / WD1 / 4CIF / CIF / QVGA / QCIF
Remote connections: 128
Network protocols: TCP/IP PPPoE DHCP EZVIZ Cloud P2P DNS DDNS NTP SADP SMTP SNMP NFS iSCSI UPnP HTTPS
SATA: 1 SATA interface
Capacity: Up to 6TB capacity for each disk
Network interface: 1; 10M / 100M / 1000M self-adaptive Ethernet interface
Serial interface: 1; standard RS-485 serial interface half-duplex
Alarm in/out: 4/1
USB port: 2x USB 2.0
Power supply: 12V DC
Consumption (without hard disks): 15W
Working temperature: -10°C - 55°C
Working humidity: 10% - 90%
Chassis: 1U chassis
Dimensions: 315mm x 242mm x 45mm
Weight (without hard disks): 1.5kg
