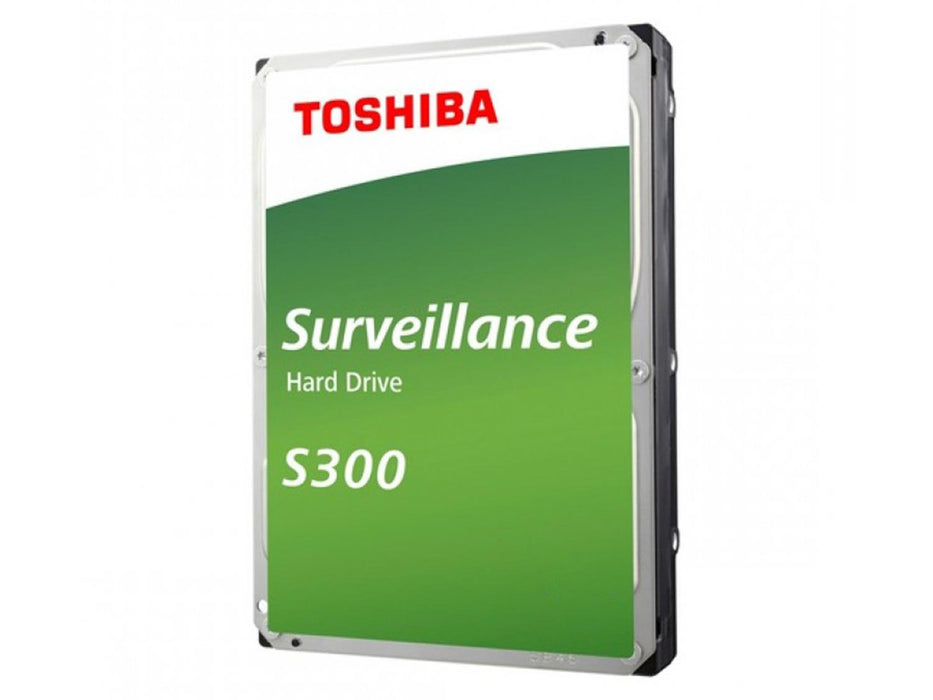

6TB Toshiba Surveillance Grade HDD Hard Drive
This massive 6TB hard drive is perfect for use in one of our professional CCTV DVRs or NVRs, allowing weeks' worth of footage. It's part of Toshiba's surveillance grade range, designed for constant use – essential when recording CCTV footage.
What's in the box?
- 1x 3.5-inch internal HDD - S300 Video Streaming Hard Drive
Basic Specifications
Form factor: 3.5-inch
Interface: 6.0 Gbit/s
Number of cameras supported: 64 (6 TB -10 TB) 32 (4 TB 5 TB)
Drive bays supported: 8+ (6 TB -10 TB) 1-8 (4 TB 5 TB)
Rotational Vibration (RV) Sensors: Yes
Advanced Format (AF): Yes
RoHS compatible: Yes
Halogen Free: Yes
Shock Sensor: Yes
Performance
Rotational speed: 7200 rpm
Max. data transfer speed (sustained): 248 MB/s Typ. (10 TB) 241 MB/s Typ. (6 TB 8 TB) 157 MB/s Typ. (4 TB 5 TB)
Buffer size: 256 MB (6 TB - 10 TB) 128 MB ( 4 TB 5 TB)
Average latency: 417 ms (6 TB - 10 TB) 556 ms (4 TB 5 TB)
Native Command Queuing (NCQ): supported
Reliability
Workloads: 180 TB/year (6 TB - 10 TB) 110 TB/year (4 TB 5 TB) MTTF 1.000.000 hours
Unrecoverable error rate: 1 per 10E14 bits read
24/7 operation: Yes
Load/Unload Cycle: 600.000
Limited warranty: 3 years
Power Management
Supply voltage: 5V DC +6/-5%; 12V DC ±10% (6TB - 10TB); 5V DC ±5%; 12V DC ±10% (4TB 5TB)
Consumption (operating): 9.48 W typ. (10 TB) 8.61 W typ. (8 TB) 7.88 W typ. (6 TB) 7.5 W typ. (4 TB 5 TB)
Consumption - Active Idle: 7.15 W typ. (10 TB) 6.33 W typ. (8 TB) 559 W typ. (6 TB) 4.00 W typ. (4 TB 5 TB)
Environmental
Temperature (operating / non-operating): 0 - 70°C / -40 - 70°C
Vibration (operating): 0.75 G (5 to 300 Hz) 0.25 G (300 to 500 Hz)
Vibration (non-operating): 3.0 G (5 to 500Hz) (6 TB - 10 TB); 5 G (5 to 500Hz) or less (4 TB 5 TB)
Shock (operating): 70 G / 2 ms duration
Shock (non-operating): 250 G / 2 ms duration (6 TB - 10 TB) 300 G / 2 ms duration (4 TB 5 TB)
Acoustics (idle mode): 34 dB typ. (6 TB - 10 TB) 26 dB typ. (4 TB 5 TB)
Physical
Dimensions: 147 (L) x 101.85 (W) x 26.1 (H) mm
Weight: (approx.) 770 g max. (6 TB - 10 TB) 720 g max. (4 TB 5 TB)
