Hikvision 4 Camera 4MP IP CCTV System with 50m Night Vision

Product Code: PKIP34
Add optional extras

Alternatively, you can Call Us or Email Us if you are interested in this product.

Hikvision are the most established and trusted name in CCTV technology, with cameras protecting homes and businesses across the globe. This 4 camera IP CCTV system uses their latest range of ultra high resolution 4 megapixel (4MP) cameras to capture images with twice the detail of even 1080p Full HD. This level of detail makes them one of the most powerful options on the market for constant recording, but without the storage demands of 4K. The system is ideal for advanced home or retail security.

The cameras pack all of this recording power into a surprisingly tight package, measuring only 15cm with the bracket. The housing is also rated IP67, for the highest level of waterproofing available for CCTV cameras. Infra red LEDs provide 50 metres of night vision to make sure your property is still secured after dark. The sensor's wide dynamic range also ensures it can record detail in challenging high contrast lighting. Crucially, the cameras also work via POE, or Power-Over-Ethernet. This means the recorder can send power to them down the cable, removing the need for additional power supplies. The camera also features Hikvision's latest range of smart video analytics, letting you automate your coverage with intrusion, object removal or face detection.

The recorder itself can be pre-fitted with your choice of hard drive, with options up to a huge 6TB. As with all of our professional-grade CCTV recorders, it has a host of adjustable recording modes. These include motion detection, scheduling and even triggering from an external alarm. The NVR has an HDMI output to watch the cameras live on a TV or monitor, or you can watch remotely using a PC, mobile or tablet.

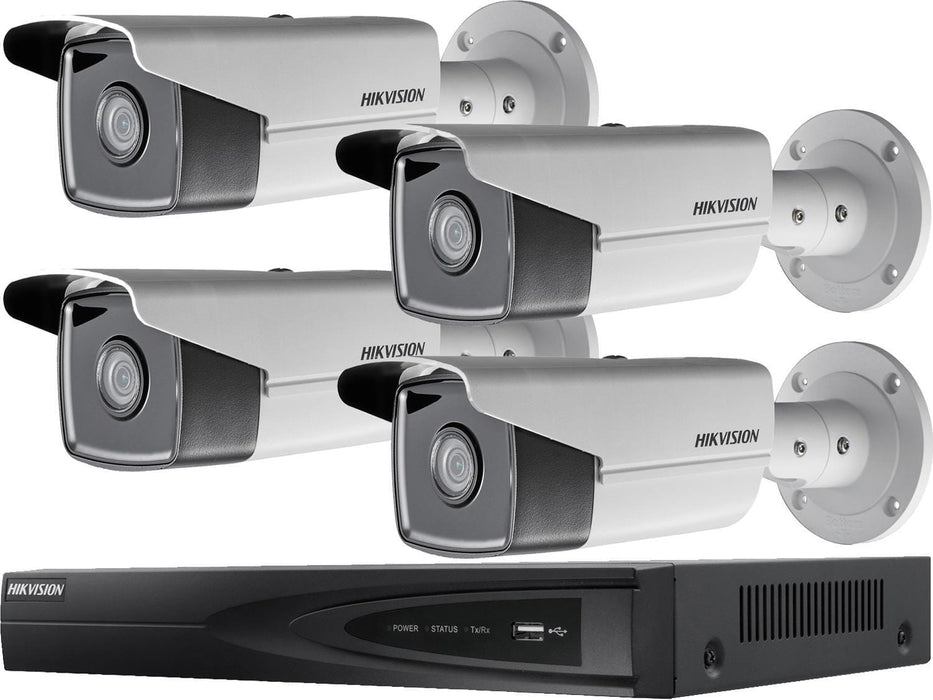

What's in the box?
  • 4x Hikvision 4MP bullet cameras
  • 4x 10m Ethernet cables
  • 1x Hikvision HD NVR
  • 1x Mains power supply
  • 1x USB mouse
  • Software & manual CD

4 Camera IP CCTV System
All-inclusive high-performance security system ideal for monitoring a home or small business property

4MP Resolution
Records at an amazing 4 megapixel (2560x1440) image size, capturing twice the detail of even 1080p Full HD

50m Night Vision
Cameras continue to record clearly after dark thanks to a ring of infra-red LEDs

Outdoor Cameras
Housings are IP67 rated, providing the highest level of weather protection available for CCTV

Wide Dynamic Range
Advanced imaging chips allow the cameras to record detailed shadows and highlights, so you can still rely on them even in tricky high-contrast lighting

Power Over Ethernet
Recorder is POE enabled, letting it send power to the cameras down the included cables, and removing the need to set up additional power supplies

Mobile Access
NVR connects to your router, allowing remote access to watch live or recorded footage over PC, mobile or tablet

HDD Storage
Ships with your choice of pre-installed hard drive, just select the size you need from the menu at the top of the page

HDMI Output
Plug the recorder directly into a TV or monitor to watch footage in Full HD

Advanced Recording Modes
Including adjustable motion detection and 7-day scheduling, all configurable on a camera-by-camera basis

Alarm In/Out
Recorder can be connected to an external alarm, creating a fully integrated security system

Image Sensor: 1/2.5 Progressive Scan CMOS
Min. Illumination: Color: 0.008 lux @(F1.2 AGC ON) 0.014 lux @(F1.6 AGC ON) 0 lux with IR
Shutter Speed: 1/3 s to 1/100000 s
Slow Shutter: Yes
Day & Night: IR Cut Filter
Wide Dynamic Range: 120dB
Angle Adjustment: Pan: 0° to 360° tilt: 0° to 100° rotate: 0° to 360°
Lens: 4mm
Auto-Iris: No
Aperture: F1.6
Focus: Fixed
FOV: horizontal FOV: 88° vertical FOV: 46° diagonal FOV: 105°
Lens Mount: M12
IR Range: Up to 50m
Wavelength: 850nm
Max. Resolution: 2688x1520 @ 25fps
Video Compression: H.265/H.264
Video Bit Rate: 32 Kbps to 16 Mbps
Behaviour Analysis: Line crossing detection intrusion detection object removal detection unattended baggage detection
Region Of Interest: Support 1 fixed region for main stream and sub-stream
Image Enhancement: BLC/3D DNR/HLC
Image Setting: Rotate mode saturation brightness contrast sharpness and white balance adjustable by client software or web browser
Target Cropping: No
Day/Night Switch: Day/Night/Auto/Schedule
Network Storage: Support microSD/SDHC/SDXC card (128G) local storage and NAS (NFSSMB/CIFS) ANR
Simultaneous Live View: Up to 6 channels
User/Host: Up to 32 users 3 levels: Administrator Operator and User
Client: iVMS-4200 Hik-Connect iVMS-5200 iVMS-4500
Alarm Trigger: Motion detection video tampering network disconnected IP address conflict illegal login HDD full HDD error
Communication Interface: 1 RJ45 10M/100M self-adaptive Ethernet port
On-Board Storage: Built-in microSD/SDHC/SDXC slot up to 128 GB
Firmware Version: V5.5.80
General Function: One-key reset anti-flicker three streams heartbeat mirror password protection privacy mask watermark IP address filter
Reset: Yes
Startup And Operating Conditions: -30°C to +60°C humidity 95% or less (non-condensing)
Power Supply: 12V DC ± 25% 5.5 mm coaxial plug power PoE (802.3af class 3)
Power Consumption And Current: 12 VDC 0.7 A max. 7.5 W PoE (802.3af 36V to 57V) 0.3 A to 0.1 A max. 9.5 W
Material: Metal
Dimensions: Camera: 104.8 mm (diameter) x 299.7 mm
Weight: 1200 g
Interface Protection: IP67
Face Detection: Yes
Exception Detection: Scene change detection

IP video input: 4-ch
Two-way audio input: 1-ch RCA (2.0 Vp-p 1kohm)
Incoming bandwidth: 40Mbps
Outgoing bandwidth: 80Mbps
Remote connection: 128
Recording Resolution: 6MP/5MP/3MP/1080P/UXGA/720P/VGA/4CIF/DCIF/2CIF/CIF/QCIF
Frame Rate: Mainstream: 50 fps (P) / 60 fps (N)
Sub-stream: 50 fps (P) / 60 fps (N)
Audio Output: 1-ch RCA (Linear 1kohm)
Synchronous Playback: 4-ch
Live view / Playback: 6MP/5MP/3MP/1080P/UXGA/720P/VGA/4CIF/DCIF/2CIF/CIF/QCIF
Capability: 4-ch@1080P
SATA: 1x SATA interface for 1 HDD
Capacity: Up to 4TB for each disk
Network Interface: 1x RJ-45 10/100/1000Mbps self-adaptive Ethernet interface
USB Interface: 1x USB 2.0 and 1x USB 3.0
Alarm In: 4-ch
Alarm Out: 1-ch
Interface: 4 independent 100 Mbps PoE network interfaces
Max. Power: 50W
Supported Standard: AF and AT
Power Supply: 48V DC
Consumption(without hard disk and POE): 10W
Working Temperature: -10ºC ~ +55ºC
Working Humidity: 10 % ~ 90 %
Chassis: 1U chassis
Dimensions: 315 x 230 x 45mm
Weight (without HDD): 1kg
