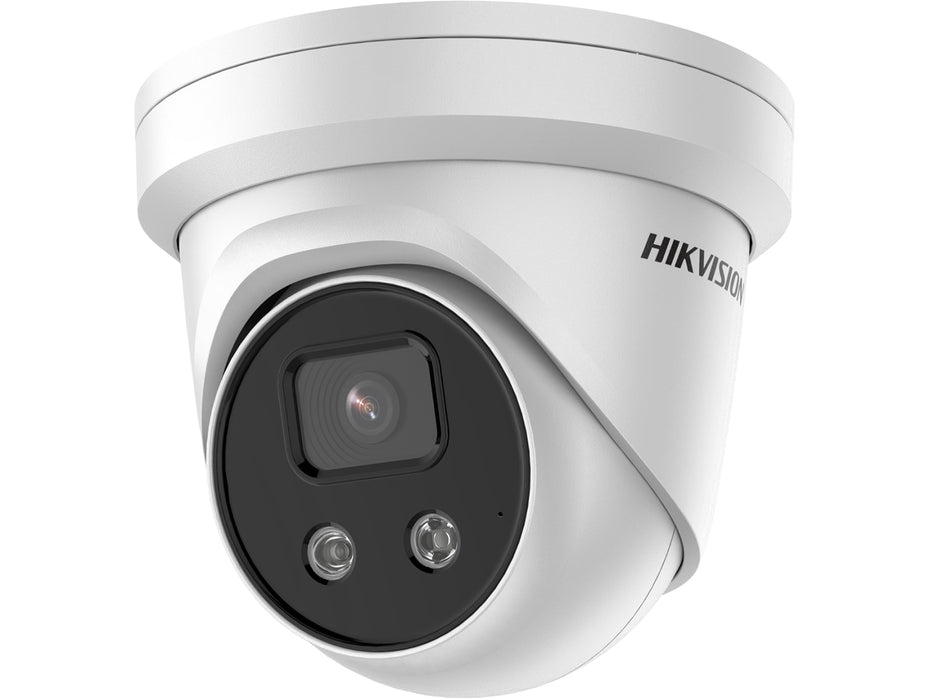

Hikvision 4K AcuSense Fixed Turret Network Camera

Hikvision 4K AcuSense Fixed Turret Network Camera

Product Code: DS-2CD2386G2-IU
Add optional extras

Alternatively, you can Call Us or Email Us if you are interested in this product.

Videos

This smart and robust turret style camera from Hikvision has a lot packed into it! Smart algorithms help the camera detect humans and vehicles, ignoring random movements in the image. Capturing 4K video and with Darkfighter technology, this camera produces brilliant images.

  • AcuSense Turret Network Camera
  • Empowered by deep learning algorithms, Hikvision AcuSense technology brings smart human or vehicle tracking that greatly reduces false alarms generated by random movement in the image.
  • 4K Video
  • Captures fully-detailed Ultra HD video at 25 frames per second.
  • Up to 30m Night Vision Range
  • Infrared LEDs allow the camera to keep recording even in complete darkness, with enough range for large outdoor spaces.
  • DarkFighter Technology
  • Excellent low-light performance with DarkFighter technology to ensure great images even without infra-red night vision.
  • Wide-angle lens
  • This model includes a 2.8mm lens, which provides a diagonal field-of-view of 131°.
  • Onboard recording storage
  • Features a microSD card slot that supports cards up to 256GB in capacity.
  • Audio
  • Built-in microphone for real-time sound.
  • Power-over-Ethernet
  • The camera draws power from the network cable, so there's no need to run a separate power supply. Requires a compatible PoE switch or NVR.
  • Remote Access
  • Connect the camera into your network to view live or recorded footage from anywhere using a PC or mobile device.
  • H.265+ Compression
  • Efficient compression allows more footage to be recorded on less storage.
What's in the box?
  • 1x Hikvision 4K AcuSense Turret Camera

Empowered by deep learning algorithms, Hikvision AcuSense technology brings human and vehicle targets classification alarms to front- and back-end devices. The system focuses on human and vehicle targets, vastly improving alarm efficiency and effectiveness.

Camera
Image Sensor: 1/1.8" Progressive Scan CMOS
Min. Illumination: Colour: 0.003 Lux @ (F1.6, AGC ON), B/W: 0 Lux with IR
Shutter Speed: 1/3 s to 1/100,000 s
Slow Shutter: Yes
P/N: P/N
Wide Dynamic Range: 120 dB
Day & Night: IR cut filter
Angle Adjustment: Pan: 0° to 360°, tilt: 0° to 75°, rotate: 0° to 360°

Lens
Lens Type: Fixed focal lens, 2.8, 4, and 6 mm optional
Focal Length & FOV: 2.8 mm, horizontal FOV 111°, vertical FOV 59°, diagonal FOV 131°
4 mm, horizontal FOV 87°, vertical FOV 47°, diagonal FOV 102°
6 mm, horizontal FOV 51°, vertical FOV 28°, diagonal FOV 60°
Lens Mount: M12
Iris Type: Fixed
Aperture: F1.6

DORI
DORI: 2.8 mm: D: 89.2 m, O: 35.4 m, R: 17.8 m, I: 8.9 m
4 mm: D: 99.4 m, O: 39.4 m, R: 19.9 m, I: 9.9 m
6 mm: D: 140.0 m, O: 55.6 m, R: 28.0 m, I: 14.0 m

Illuminator
Supplement Light Type: IR
Smart Supplement Light: Yes
IR Wavelength: 850 nm
IR Range: Up to 30 m

Video
Max. Resolution: 3840×2160
Main Stream: 25 fps (3840×2160, 3200×1800, 2688×1520, 1920×1080, 1280×720)
Sub-Stream: 25 fps (640×480, 640×360)
Third Stream: 10 fps (1920×1080, 1280×720, 640×480, 640×360)
Video Compression: Main stream: H.265/H.264/H.264+/H.265+
Sub-stream: H.265/H.264/MJPEG
Third stream: H.265/H.264
Video Bit Rate: 32 Kbps to 16 Mbps
H.264 Type: Baseline Profile/Main Profile/High Profile
H.265 Type: Main Profile
H.264+: Main stream supports
H.265+: Main stream supports
Bit Rate Control: CBR/VBR
Scalable Video Coding (SVC): H.264 and H.265 encoding
Region Of Interest (ROI): 1 fixed region for main stream and sub-stream

Audio
Audio Type: mono sound
Audio Compression: G.711ulaw/G.711alaw/G.722.1/G.726/MP2L2/PCM/MP3/AAC
Audio Bit Rate: 64 Kbps (G.711ulaw/G.711alaw)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 to 192 Kbps (MP2L2)/8 to 320 Kbps (MP3)/16 to 64 Kbps (AAC)
Audio Sampling Rate: 8 kHz/16 kHz/32 kHz/44.1 kHz/48 kHz
Environment Noise Filtering: Yes

Network
Protocols: TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, NTP, UPnP, SMTP, IGMP, 802.1X, QoS, IPv4, IPv6, UDP, Bonjour, SSL/TLS, PPPoE, SNMP, ARP
Simultaneous Live View: Up to 6 channels
API: Open Network Video Interface (PROFILE S, PROFILE G, PROFILE T), ISAPI, SDK
User/Host: Up to 32 users. 3 user levels: administrator, operator and user
Security: Password protection, complicated password, HTTPS encryption, IP address filter, Security Audit Log, basic and digest authentication for HTTP/HTTPS, TLS 1.1/1.2, WSSE and digest authentication for Open Network Video Interface
Network Storage: MicroSD/SDHC/SDXC card (256 GB) local storage, and NAS (NFS, SMB/CIFS), auto network replenishment (ANR)
Client: iVMS-4200, Hik-Connect, Hik-Central
Web Browser: IE, Chrome, Firefox, Safari

Image Parameters Switch: Yes
Image Settings: Rotate mode, saturation, brightness, contrast, sharpness, gain, white balance adjustable by client software or web browser
Day/Night Switch: Day, Night, Auto, Schedule
SNR: ≥ 52 dB
Image Enhancement: BLC, HLC, 3D DNR
Target Cropping: Yes

Interface
Ethernet Interface: 1 RJ45 10 M/100 M self-adaptive Ethernet port
On-Board Storage: Built-in micro SD/SDHC/SDXC slot, up to 256 GB
Built-In Microphone: Yes
Hardware Reset: Yes

Event
Basic Event: Motion detection (human and vehicle targets classification), video tampering alarm, exception
Smart Event: Scene change detection

Deep Learning Function
Face Capture: Yes
Perimeter Protection: Line crossing detection, intrusion detection, region entrance detection, region exiting detection (Supports human and vehicle targets classification)

General
Linkage Method: Upload to FTP/NAS/memory card, notify surveillance centre, send email, trigger recording, trigger capture
Camera Material: Metal
Camera Dimensions: Ø 138.3 mm×126.3 mm
Package Dimensions: 170 mm×170 mm×150 mm
Camera Weight: Approx. 740g
With Package Weight: Approx. 1020g
Storage Conditions: -30 °C to 60 °C, Humidity 95% or less (non-condensing)
Operating Conditions: -30 °C to 60 °C, humidity 95% or less (non-condensing)
General Function: Anti-flicker, heartbeat, mirror, privacy mask, flash log, password reset via email, pixel counter
Firmware Version: V5.5.112
Software Reset: Yes
Power Consumption: 12V DC 0.48 A, max. 5.8 W; PoE (802.3af, 36 V to 57 V), 0.19 A to 0.12 A, max. 6.8 W
Power Supply: 12V DC ± 25%, reverse polarity protection; PoE: 802.3af, Class 3
Power Interface: Ø5.5 mm coaxial power plug

Certification
EMC: FCC, CE-EMC, RCM, KC
Safety: UL, CB, CE-LVD
Environment: CE-RoHS, WEEE, Reach
Protection: IP67

  • AcuSense Turret Network Camera
  • Empowered by deep learning algorithms, Hikvision AcuSense technology brings smart human or vehicle tracking that greatly reduces false alarms generated by random movement in the image.
  • 4K Video
  • Captures fully-detailed Ultra HD video at 25 frames per second.
  • Up to 30m Night Vision Range
  • Infrared LEDs allow the camera to keep recording even in complete darkness, with enough range for large outdoor spaces.
  • DarkFighter Technology
  • Excellent low-light performance with DarkFighter technology to ensure great images even without infra-red night vision.
  • Wide-angle lens
  • This model includes a 2.8mm lens, which provides a diagonal field-of-view of 131°.
  • Onboard recording storage
  • Features a microSD card slot that supports cards up to 256GB in capacity.
  • Audio
  • Built-in microphone for real-time sound.
  • Power-over-Ethernet
  • The camera draws power from the network cable, so there's no need to run a separate power supply. Requires a compatible PoE switch or NVR.
  • Remote Access
  • Connect the camera into your network to view live or recorded footage from anywhere using a PC or mobile device.
  • H.265+ Compression
  • Efficient compression allows more footage to be recorded on less storage.
What's in the box?
  • 1x Hikvision 4K AcuSense Turret Camera

Empowered by deep learning algorithms, Hikvision AcuSense technology brings human and vehicle targets classification alarms to front- and back-end devices. The system focuses on human and vehicle targets, vastly improving alarm efficiency and effectiveness.

Camera
Image Sensor: 1/1.8" Progressive Scan CMOS
Min. Illumination: Colour: 0.003 Lux @ (F1.6, AGC ON), B/W: 0 Lux with IR
Shutter Speed: 1/3 s to 1/100,000 s
Slow Shutter: Yes
P/N: P/N
Wide Dynamic Range: 120 dB
Day & Night: IR cut filter
Angle Adjustment: Pan: 0° to 360°, tilt: 0° to 75°, rotate: 0° to 360°

Lens
Lens Type: Fixed focal lens, 2.8, 4, and 6 mm optional
Focal Length & FOV: 2.8 mm, horizontal FOV 111°, vertical FOV 59°, diagonal FOV 131°
4 mm, horizontal FOV 87°, vertical FOV 47°, diagonal FOV 102°
6 mm, horizontal FOV 51°, vertical FOV 28°, diagonal FOV 60°
Lens Mount: M12
Iris Type: Fixed
Aperture: F1.6

DORI
DORI: 2.8 mm: D: 89.2 m, O: 35.4 m, R: 17.8 m, I: 8.9 m
4 mm: D: 99.4 m, O: 39.4 m, R: 19.9 m, I: 9.9 m
6 mm: D: 140.0 m, O: 55.6 m, R: 28.0 m, I: 14.0 m

Illuminator
Supplement Light Type: IR
Smart Supplement Light: Yes
IR Wavelength: 850 nm
IR Range: Up to 30 m

Video
Max. Resolution: 3840×2160
Main Stream: 25 fps (3840×2160, 3200×1800, 2688×1520, 1920×1080, 1280×720)
Sub-Stream: 25 fps (640×480, 640×360)
Third Stream: 10 fps (1920×1080, 1280×720, 640×480, 640×360)
Video Compression: Main stream: H.265/H.264/H.264+/H.265+
Sub-stream: H.265/H.264/MJPEG
Third stream: H.265/H.264
Video Bit Rate: 32 Kbps to 16 Mbps
H.264 Type: Baseline Profile/Main Profile/High Profile
H.265 Type: Main Profile
H.264+: Main stream supports
H.265+: Main stream supports
Bit Rate Control: CBR/VBR
Scalable Video Coding (SVC): H.264 and H.265 encoding
Region Of Interest (ROI): 1 fixed region for main stream and sub-stream

Audio
Audio Type: mono sound
Audio Compression: G.711ulaw/G.711alaw/G.722.1/G.726/MP2L2/PCM/MP3/AAC
Audio Bit Rate: 64 Kbps (G.711ulaw/G.711alaw)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 to 192 Kbps (MP2L2)/8 to 320 Kbps (MP3)/16 to 64 Kbps (AAC)
Audio Sampling Rate: 8 kHz/16 kHz/32 kHz/44.1 kHz/48 kHz
Environment Noise Filtering: Yes

Network
Protocols: TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, NTP, UPnP, SMTP, IGMP, 802.1X, QoS, IPv4, IPv6, UDP, Bonjour, SSL/TLS, PPPoE, SNMP, ARP
Simultaneous Live View: Up to 6 channels
API: Open Network Video Interface (PROFILE S, PROFILE G, PROFILE T), ISAPI, SDK
User/Host: Up to 32 users. 3 user levels: administrator, operator and user
Security: Password protection, complicated password, HTTPS encryption, IP address filter, Security Audit Log, basic and digest authentication for HTTP/HTTPS, TLS 1.1/1.2, WSSE and digest authentication for Open Network Video Interface
Network Storage: MicroSD/SDHC/SDXC card (256 GB) local storage, and NAS (NFS, SMB/CIFS), auto network replenishment (ANR)
Client: iVMS-4200, Hik-Connect, Hik-Central
Web Browser: IE, Chrome, Firefox, Safari

Image Parameters Switch: Yes
Image Settings: Rotate mode, saturation, brightness, contrast, sharpness, gain, white balance adjustable by client software or web browser
Day/Night Switch: Day, Night, Auto, Schedule
SNR: ≥ 52 dB
Image Enhancement: BLC, HLC, 3D DNR
Target Cropping: Yes

Interface
Ethernet Interface: 1 RJ45 10 M/100 M self-adaptive Ethernet port
On-Board Storage: Built-in micro SD/SDHC/SDXC slot, up to 256 GB
Built-In Microphone: Yes
Hardware Reset: Yes

Event
Basic Event: Motion detection (human and vehicle targets classification), video tampering alarm, exception
Smart Event: Scene change detection

Deep Learning Function
Face Capture: Yes
Perimeter Protection: Line crossing detection, intrusion detection, region entrance detection, region exiting detection (Supports human and vehicle targets classification)

General
Linkage Method: Upload to FTP/NAS/memory card, notify surveillance centre, send email, trigger recording, trigger capture
Camera Material: Metal
Camera Dimensions: Ø 138.3 mm×126.3 mm
Package Dimensions: 170 mm×170 mm×150 mm
Camera Weight: Approx. 740g
With Package Weight: Approx. 1020g
Storage Conditions: -30 °C to 60 °C, Humidity 95% or less (non-condensing)
Operating Conditions: -30 °C to 60 °C, humidity 95% or less (non-condensing)
General Function: Anti-flicker, heartbeat, mirror, privacy mask, flash log, password reset via email, pixel counter
Firmware Version: V5.5.112
Software Reset: Yes
Power Consumption: 12V DC 0.48 A, max. 5.8 W; PoE (802.3af, 36 V to 57 V), 0.19 A to 0.12 A, max. 6.8 W
Power Supply: 12V DC ± 25%, reverse polarity protection; PoE: 802.3af, Class 3
Power Interface: Ø5.5 mm coaxial power plug

Certification
EMC: FCC, CE-EMC, RCM, KC
Safety: UL, CB, CE-LVD
Environment: CE-RoHS, WEEE, Reach
Protection: IP67
