Hikvision 4K CCTV System with 4 30m Turret Cameras, NVR

Hikvision 4K CCTV System with 4 30m Turret Cameras, NVR

Product Code: PK4K74
Add optional extras

Alternatively, you can Call Us or Email Us if you are interested in this product.

Videos

Camera Features
  • Hikvision 4K IP Camera
  • An advanced security camera from the largest manufacturer of surveillance gear in the world
  • 8 Megapixel Video
  • Records 3840x2160 video files, capturing 4 times the subject detail of even 1080p. Enough for even the most demanding applications
  • Turret Camera
  • The compact housing has a low profile, making it great for retail or club security
  • 30m Night Vision
  • Despite its small size, the camera packs a 30-metre night vision range, enough for outdoor spaces
  • Power Over Ethernet
  • Draws power from the network cables, so no need for installing annoying extra power supplies
  • IP67 Housing
  • The camera is entirely weatherproof, allowing use outdoors
  • Smart Features
  • Packs Hikvision's latest range of automation features, including face detection, entry/exit detection and line cross detection
  • H.265 Compression
  • Advanced video compression lets you record for longer without having to clear your hard drive, all with no drop in image quality
Recorder Features
  • 4K Recording
  • NVR captures huge 3840x2160 video files, so you won't lose any of the cameras' image quality
  • Up to 8 Cameras
  • Works with 4 cameras at 4K, or drop the quality down to "only" 1080p to record up to 8 cameras
  • Audio Recording
  • Features an RCA audio input, letting you record sound from a connected PA system
  • Hard Drive Storage
  • Price includes your choice of a preinstalled hard drive. Just check the dropdown at the top of the page to see the options
  • Double Hard Drive Bays
  • Includes space for a second hard drive, allowing a huge maximum capacity of 12TB
  • HDMI & VGA Output
  • Lets you easily connect the recorder to a TV or screen for local monitoring
  • PC & Mobile Access
  • Connect NVR to your router to allow remote viewing of live or recorded footage over the internet. View cameras from PC, Mac or mobile device
What's in the box?

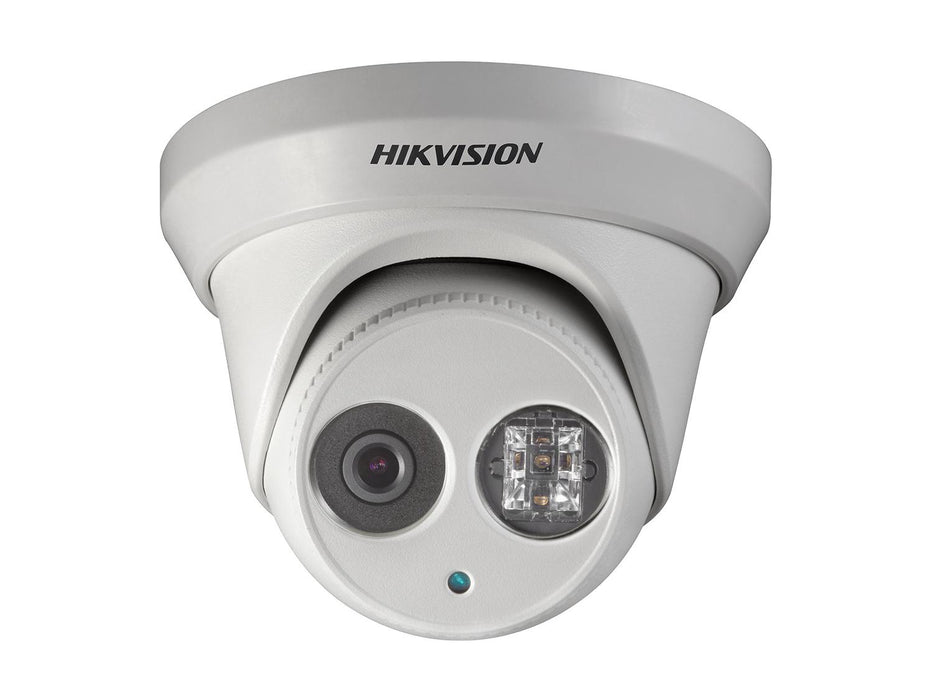

  • 4x Hikvision 4K turret cameras
  • 4x 10m ethernet cables

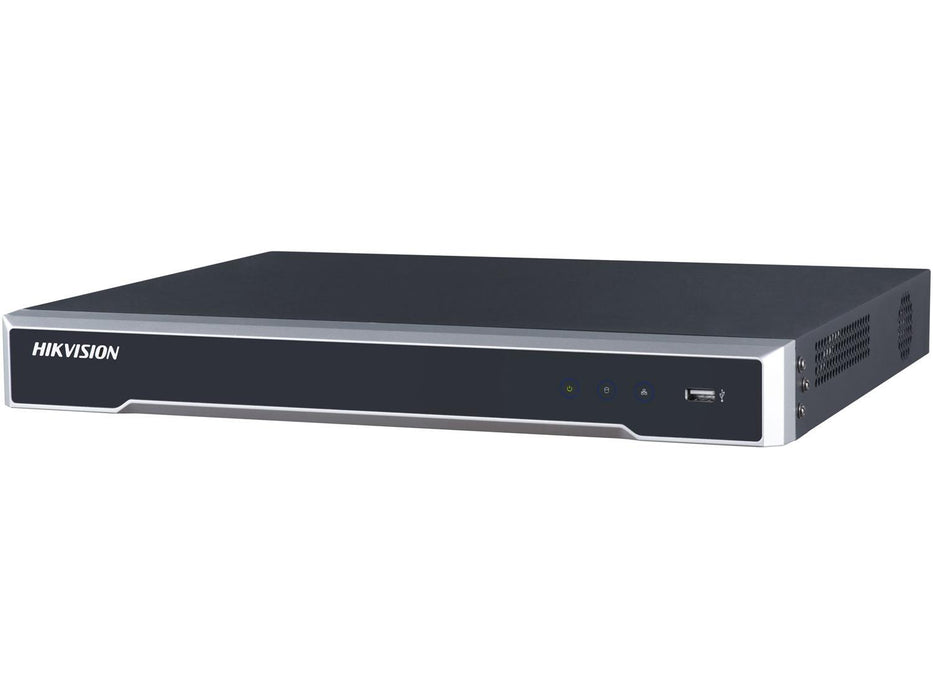

  • 1x Hikvision NVR
  • 1x USB Mouse
  • 1x Power supply for recorder
  • 1x Software & manual CD

We frequently speak to customers who find that even 1080p HD cameras don't have enough resolution for their needs. For example, if you need to identify specific faces, monitor large crowds of people, or track small subjects in a large area, then you need to record the most detail possible. Thankfully, our selection of Hikvision 4K CCTV kits records huge 8-megapixel video files (3840x2160), resolving four times the subject detail of 1080p.

This system is no exception, featuring 3 high resolution but compact turret cameras. The discreet housings make them ideal for retail or club security. They are also IP67 rated, making them weatherproof and suitable for outdoor use. What's more, they also boast HIkvision's range of smart detection features. These use advanced video analytics to allow a whole range of automation options. They include face detection, line crossing detection - even unattended baggage notifications. The cameras use power-over-ethernet, so they draw power from the recorder instead of needing individual power supplies.

The included Network Video Recorder (NVR) features your choice of hard drive storage. The NVR actually has two hard drive bays, allowing you a ridiculous maximum storage capacity of 12TB! It actually has 8 PoE ports. This means that you connect 4 cameras at full 4K resolution, or drop the quality down to "only" 1080p to add an additional 4. Connect the NVR to your router to configure the remote access feature, letting you watch live or recorded footage from your cameras from anywhere using a PC, Mac or mobile device.

Camera

Imaging Sensor: 1/2.5 CMOS
Minimum Illumination: 0.01Lux (Colour) 0Lux (IR on)
Shutter Speed: 1/3 - 1/100000s
Slow Shutter: Support
Lens: 2.8mm
Field Of View: 102° (horizontal)
Lens Mount: M12
Iris: f/2
Day & Night: IR cut filter
DNR: 3D DNR
Wide Dynamic Range: 120dB
Video Compression: H.265/H.264 (main stream) H.265/H.264/MJPEG (sub stream) H.265/H.264 (third stream)
H.264 Type: Main Profile/High Profile
H.264+: Support
H.265 Type: Main Profile
H.265+: Support
Video Bitrate: 32Kbps to 16MBps
Max Resolution: 3840x2160
Main stream: 3840x2160 @20fps 2560x1920/2560x1440/1920x1080/1280x720 @25fps
Sub stream: 640x360/352x288 @25fps
Third stream: 1280x720/640x360352x288 @25fps
Image Enhancement: BLC 3D DNR
Image Settings: Rotate Brightness/Contrast/Saturation/Sharpness adjustable via software
Day/Night Switch: Auto/Scheduled
Storage: MicroSD (up to 128GB not included)
Alarm Trigger: Motion Detect Tampering Alarm Network Disconnect IP Address Conflict Illegal Login HDD Full HDD Error
Protocol: TVP/IP UDP ICMP HTTPS FTP DHCP DNS DDNS RTP RTSP RTCP PPPoE NTP UPnP SMTP SNMP IGMP 802.1X QoS IPv6
Standard: ONVIF (Profile S/G) PSIA CGI ISAPI
Network Function: One key reset Anti-flicker Heartbeat Mirror Password protection Privacy mask Watermark IP Address filter
Communication Interface: 1x RJ45 10M/100M Self-adaptive Ethernet
Smart Features: Line crossing detection Intrusion detection Object removal detection Unattended baggage detection Face detection
Operational Temperature: -30°c to +60°c
Operational Humidity: <95%
Power Supply: 12V DC PoE (802.3af 42.5 - 57V class 3)
Power Consumption: 12V DC +/- 25% 7.5W PoE 9.5W
IR Range: 50m
Protection Level: IP67
Dimensions: 127.3(diameter) x 95.9mm
Weight: 620g

Recorder

Inputs
IP video input: 8 channels
Incoming bandwidth: 80 Mbps
Outgoing bandwidth: 160 Mbps

Outputs
HDMI output resolution: 4K 2K 1920x1080 1600x1200 1280x1024 1280x720 1024x768
VGA output resolution: 1920x1080 1280x1024 1280x720 1024x768
Audio output: 1-ch RCA (Linear 1k„¦)

Decoding
Decoding format: H.265/H.264/H.264+/MPEG4
Recording Resolution: 8MP/6MP/5MP/4MP/3MP/1080p/UXGA/720p/VGA/4CIF/DCIF/2CIF/CIF/QCIF
Synchronous playback: 8-ch
Capability: 2-ch @ 4K or 8-ch @ 1080p

Network
Network protocols: TCIP/IP DHCP Hik Cloud P2P DNS DDNS NTP SADP SMTP NFS Iscsi UPnP HTTPS

Hard disk
SATA: 2x SATA interfaces
Capacity: Up to 6TB capacity per disk

External Interface
Two-way audio: 1-ch RCA (2.0 Vp-p 1kohm)
Network interface: 1x RJ-45 10/100/1000 Mbps self-adaptive Ethernet interface
USB interface: Front: 1x USB 2.0; Rear: 1x USB 3.0
Alarm in/out: 4/1
Power supply: 12V DC
Power: ‰¤40 W
Consumption (without HDD): 15 W
Operating temperature: -10ºC to +55ºC
Operating humidity: 10 to 90%
Chassis: 385mm chassis
Dimensions: 385x315x52 mm
Weight (without HDD): 1 kg

Camera Features
  • Hikvision 4K IP Camera
  • An advanced security camera from the largest manufacturer of surveillance gear in the world
  • 8 Megapixel Video
  • Records 3840x2160 video files, capturing 4 times the subject detail of even 1080p. Enough for even the most demanding applications
  • Turret Camera
  • The compact housing has a low profile, making it great for retail or club security
  • 30m Night Vision
  • Despite its small size, the camera packs a 30-metre night vision range, enough for outdoor spaces
  • Power Over Ethernet
  • Draws power from the network cables, so no need for installing annoying extra power supplies
  • IP67 Housing
  • The camera is entirely weatherproof, allowing use outdoors
  • Smart Features
  • Packs Hikvision's latest range of automation features, including face detection, entry/exit detection and line cross detection
  • H.265 Compression
  • Advanced video compression lets you record for longer without having to clear your hard drive, all with no drop in image quality
Recorder Features
  • 4K Recording
  • NVR captures huge 3840x2160 video files, so you won't lose any of the cameras' image quality
  • Up to 8 Cameras
  • Works with 4 cameras at 4K, or drop the quality down to "only" 1080p to record up to 8 cameras
  • Audio Recording
  • Features an RCA audio input, letting you record sound from a connected PA system
  • Hard Drive Storage
  • Price includes your choice of a preinstalled hard drive. Just check the dropdown at the top of the page to see the options
  • Double Hard Drive Bays
  • Includes space for a second hard drive, allowing a huge maximum capacity of 12TB
  • HDMI & VGA Output
  • Lets you easily connect the recorder to a TV or screen for local monitoring
  • PC & Mobile Access
  • Connect NVR to your router to allow remote viewing of live or recorded footage over the internet. View cameras from PC, Mac or mobile device
What's in the box?
  • 4x Hikvision 4K turret cameras
  • 4x 10m ethernet cables
  • 1x Hikvision NVR
  • 1x USB Mouse
  • 1x Power supply for recorder
  • 1x Software & manual CD

We frequently speak to customers who find that even 1080p HD cameras don't have enough resolution for their needs. For example, if you need to identify specific faces, monitor large crowds of people, or track small subjects in a large area, then you need to record the most detail possible. Thankfully, our selection of Hikvision 4K CCTV kits records huge 8-megapixel video files (3840x2160), resolving four times the subject detail of 1080p.

This system is no exception, featuring 3 high resolution but compact turret cameras. The discreet housings make them ideal for retail or club security. They are also IP67 rated, making them weatherproof and suitable for outdoor use. What's more, they also boast HIkvision's range of smart detection features. These use advanced video analytics to allow a whole range of automation options. They include face detection, line crossing detection - even unattended baggage notifications. The cameras use power-over-ethernet, so they draw power from the recorder instead of needing individual power supplies.

The included Network Video Recorder (NVR) features your choice of hard drive storage. The NVR actually has two hard drive bays, allowing you a ridiculous maximum storage capacity of 12TB! It actually has 8 PoE ports. This means that you connect 4 cameras at full 4K resolution, or drop the quality down to "only" 1080p to add an additional 4. Connect the NVR to your router to configure the remote access feature, letting you watch live or recorded footage from your cameras from anywhere using a PC, Mac or mobile device.

Camera

Imaging Sensor: 1/2.5 CMOS
Minimum Illumination: 0.01Lux (Colour) 0Lux (IR on)
Shutter Speed: 1/3 - 1/100000s
Slow Shutter: Support
Lens: 2.8mm
Field Of View: 102° (horizontal)
Lens Mount: M12
Iris: f/2
Day & Night: IR cut filter
DNR: 3D DNR
Wide Dynamic Range: 120dB
Video Compression: H.265/H.264 (main stream) H.265/H.264/MJPEG (sub stream) H.265/H.264 (third stream)
H.264 Type: Main Profile/High Profile
H.264+: Support
H.265 Type: Main Profile
H.265+: Support
Video Bitrate: 32Kbps to 16MBps
Max Resolution: 3840x2160
Main stream: 3840x2160 @20fps 2560x1920/2560x1440/1920x1080/1280x720 @25fps
Sub stream: 640x360/352x288 @25fps
Third stream: 1280x720/640x360352x288 @25fps
Image Enhancement: BLC 3D DNR
Image Settings: Rotate Brightness/Contrast/Saturation/Sharpness adjustable via software
Day/Night Switch: Auto/Scheduled
Storage: MicroSD (up to 128GB not included)
Alarm Trigger: Motion Detect Tampering Alarm Network Disconnect IP Address Conflict Illegal Login HDD Full HDD Error
Protocol: TVP/IP UDP ICMP HTTPS FTP DHCP DNS DDNS RTP RTSP RTCP PPPoE NTP UPnP SMTP SNMP IGMP 802.1X QoS IPv6
Standard: ONVIF (Profile S/G) PSIA CGI ISAPI
Network Function: One key reset Anti-flicker Heartbeat Mirror Password protection Privacy mask Watermark IP Address filter
Communication Interface: 1x RJ45 10M/100M Self-adaptive Ethernet
Smart Features: Line crossing detection Intrusion detection Object removal detection Unattended baggage detection Face detection
Operational Temperature: -30°c to +60°c
Operational Humidity: <95%
Power Supply: 12V DC PoE (802.3af 42.5 - 57V class 3)
Power Consumption: 12V DC +/- 25% 7.5W PoE 9.5W
IR Range: 50m
Protection Level: IP67
Dimensions: 127.3(diameter) x 95.9mm
Weight: 620g

Recorder

Inputs
IP video input: 8 channels
Incoming bandwidth: 80 Mbps
Outgoing bandwidth: 160 Mbps

Outputs
HDMI output resolution: 4K 2K 1920x1080 1600x1200 1280x1024 1280x720 1024x768
VGA output resolution: 1920x1080 1280x1024 1280x720 1024x768
Audio output: 1-ch RCA (Linear 1k„¦)

Decoding
Decoding format: H.265/H.264/H.264+/MPEG4
Recording Resolution: 8MP/6MP/5MP/4MP/3MP/1080p/UXGA/720p/VGA/4CIF/DCIF/2CIF/CIF/QCIF
Synchronous playback: 8-ch
Capability: 2-ch @ 4K or 8-ch @ 1080p

Network
Network protocols: TCIP/IP DHCP Hik Cloud P2P DNS DDNS NTP SADP SMTP NFS Iscsi UPnP HTTPS

Hard disk
SATA: 2x SATA interfaces
Capacity: Up to 6TB capacity per disk

External Interface
Two-way audio: 1-ch RCA (2.0 Vp-p 1kohm)
Network interface: 1x RJ-45 10/100/1000 Mbps self-adaptive Ethernet interface
USB interface: Front: 1x USB 2.0; Rear: 1x USB 3.0
Alarm in/out: 4/1
Power supply: 12V DC
Power: ‰¤40 W
Consumption (without HDD): 15 W
Operating temperature: -10ºC to +55ºC
Operating humidity: 10 to 90%
Chassis: 385mm chassis
Dimensions: 385x315x52 mm
Weight (without HDD): 1 kg
