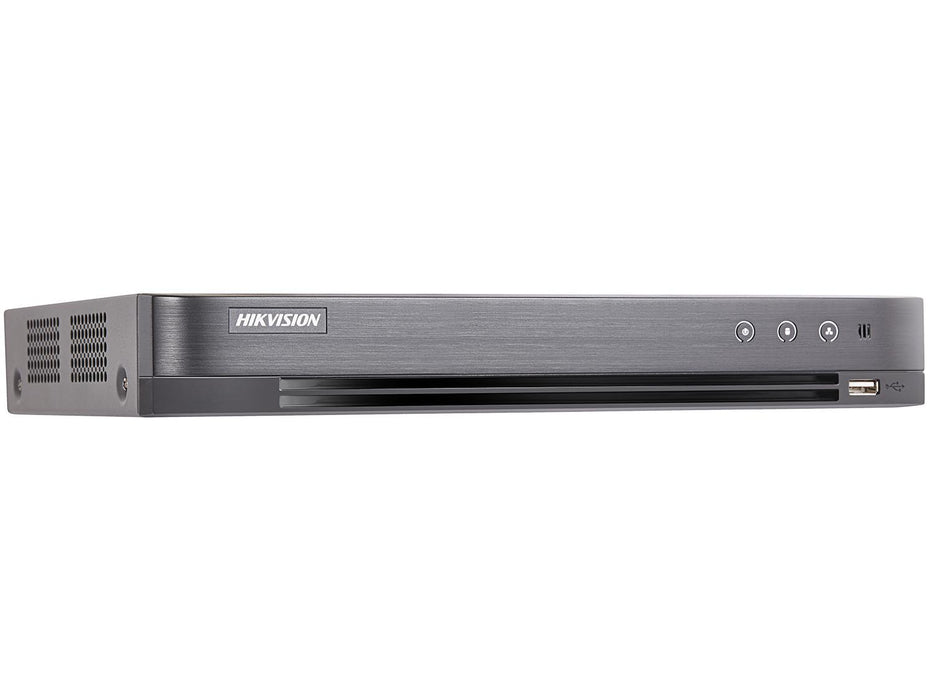

Hikvision 5MP AcuSense 4 Channel DVR

Product Code: iDS-7204HUHI-K1/4S(B)
Add optional extras

Alternatively, you can Call Us or Email Us if you are interested in this product.

What is Hikvision AcuSense Technology?

AcuSense takes a surveillance system to the next level. Rather than just passively monitoring events AcuSense adds analytical intelligence. There are many advantages to this including the ability to watch events in real-time, obtaining key data around those events and providing accurate evidence for law enforcement.

AcuSense technology is powered by deep learning algorithms, which distinguishes people and vehicles from other moving objects. This makes your CCTV system extremely powerful when it comes to things like perimeter protection and break-ins. You can create accurate alarms that are triggered by people and vehicles without all the false alarms standard motion detection creates when it detects small animals or other irrelevant objects. Video clips are stored on the recorder and are easily serchable to make it really easy to find the footage you need. Alarms can be integrated with existing surveillance systems to create a foolproof system for businesses and larger sites.

What's in the box?
  • 1x Hikvision AcuSense 4 Channel DVR
  • 1x UK mains power supply
  • 1x USB mouse
  • Manual

Hikvision AcuSense Technology
Uses the latest AcuSense technology from Hikvision that allows smart video analytics.

5MP Video Recording
Supports cameras up to 5MP in resolution and it even supports one cameras at 8MP.

Hybrid Recorder
BNC inputs allow use with HD-TVI, HD-CVI, AHD and CVBS camera formats, allowing you to mix and match new and legacy cameras.

Connect IP Cameras Too
When connected to the network, the recorder can also process up to 8 IP cameras.

Smart Analytics
Supports deep learning-based behavior analysis (including line crossing and intrusion detection) or facial detection on both coax and IP cameras.

H.265 Pro+ Compression
Uses Hikvision's advanced compression technology, for video files that take up 75% less hard drive space than H.264 (requires compatible cameras).

HDMI Output
Easily connect via HDMI to a Full HD TV or monitor to view footage with no loss of quality.

Audio Input
Includes 4 RCA audio inputs, letting you connect external microphones for each channel.

Hard Drive Storage
Includes 1 SATA bay, allowing storage of up to 10TB. Simply select the size you need from the drop down menu, and we can install this for you prior to shipping.

Remote Access
Connect DVR to your router in order to allow remote viewing and control using Hikvision's secure PC app.

Mobile Access
Cameras and recordings can also be viewed via Hikvision's iOS or Android apps, letting you stay in touch no matter where you are.

Plug and Play
Coaxial cameras simply connect to the recorder with twist fit BNC connectors, so there's no need for a complex network configuration.

Alarm In/Out
4 alarm inputs and 1 output let you easily integrate the recorder into an existing security system.

Recording
Encoding Resolution: Main stream: 8 MP@8 fps/5 MP@12 fps/4 MP@15 fps/3 MP@18 fps 1080p/720p/WD1/4CIF/VGA/CIF@25 fps; 8 MP@8 fps is only available for channel 1
Video Bit Rate: 32 Kbps to 6 Mbps
Dual Stream: Support
Stream Type: Video Video & Audio
Audio Compression: G.711u
Audio Bit Rate: 64 Kbps

Video And Audio
IP Video Input: 2-ch (up to 6-ch) IP enhanced mode on: 4-ch (up to 8-ch) each up to 4 Mbps
AHD Input: 5 MP 4 MP 1080p@25 fps 1080p@30 fps 720p@25 fps 720p@30 fps 4 MP 1080p@25 fps 1080p@30 fps 720p@25 fps 720p@30 fps
CVI Input: 4 MP 1080p@25 fps 1080p@30 fps 720p@25 fps 720p@30 fps
CVBS Input: PAL/NTSC
HDMI/VGA Output: VGA: 1-ch 1920 x 1080/60Hz 1280 x 1024/60Hz 1280 x 720/60Hz 1024 x 768/60Hz HDMI/VGA simultaneous output HDMI: 1-ch 2K (2560 x 1440)/60Hz 1920 x 1080/60Hz 1280 x 1024/60Hz 1280 x 720/60Hz 1024 x 768/60Hz HDMI/VGA simultaneous output
Audio Input: 1-ch RCA (2.0 Vp-p 1 Kohm)
Audio Output: 1-ch RCA (Linear 1 Kohm)
Two-Way Audio: 1-ch RCA (2.0 Vp-p 1 Kohm) (using the first audio input)
Synchronous Playback: 4-ch
TVI Input: 8MP 5MP 4MP 3MP 1080p@30 fps 1080p@25 fps 720p@60 fps 720p@50 fps 720p@30 fps 720p@25 fps; 8MP signal input is only available for channel 1
CVBS Output: 1-ch BNC (1.0 Vp-p 75 ohm)resolution: PAL: 704 x 576 NTSC: 704 x 480

Network
Remote Connections: 128
Network Interface: 1x RJ45 10M/100M self-adaptive Ethernet interface

Auxiliary Interface
SATA: 1x SATA interface
Capacity: Up to 10 TB capacity
Alarm In/Out: 4/1
USB Interface: 1x USB 2.0; 1x USB 3.0

General
Power Supply: 12V DC
Working Temperature: -10 °C to +55 °C
Working Humidity: 10% to 90%
Weight (Without HDD): 1.16 kg
Consumption (Without HDD): 10 W
Dimensions (W x D x H): 315 x 242 x 45 mm
