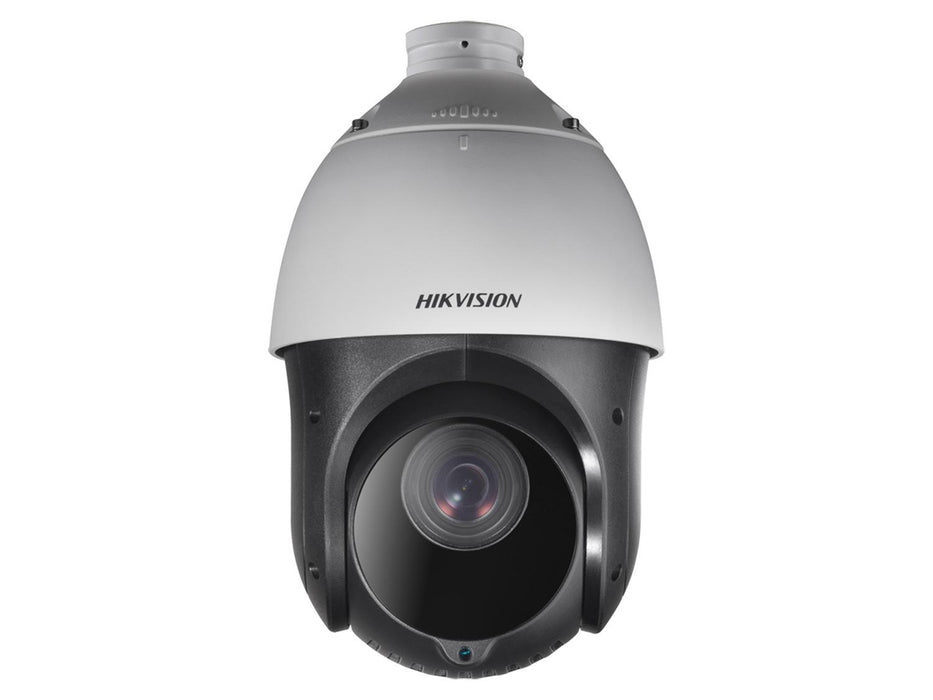

Hikvision Turbo HD TVI 1080p PTZ Dome - 100m IR, 15x Zoom

Product Code: HKTV21015PTZ
Add optional extras

Alternatively, you can Call Us or Email Us if you are interested in this product.

Pan-tilt-zoom (or PTZ) cameras are mounted to a motorised base, letting you remotely control their position. This makes them a fantastic option for easily monitoring larger spaces that would otherwise need multiple cameras, or for tracking moving subjects. This Hikvision Turbo HD camera uses the HD-TVI format, letting you send high-resolution video and camera movement commands all over one standard BNC cable.

As well as the motorised base, the camera is fitted with a 15x optical zoom lens, able to move from a 53-degree field of view to a tight 4-degree angle. When combined with the 1080p Full HD sensor, this allows you to capture incredibly fine levels of subject detail. This is essential when used in areas with lots of foot traffic, or for capturing number plates in car parks. All of the electronics are protected by an IP66 rated weatherproof case, allowing outdoor installation.

Once connected to a Hikvision DVR, you can either control the camera using the recorder's built-in interface or by using the Hikvision PC app. For direct fingertip control, connect the DVR to one of our range of dedicated PTZ joystick controllers. The camera can then be moved manually, or programmed with up to 256 preset positions and 10 patrol patterns. You can even set the camera to carry out patrol movements at regular timed intervals.

What's in the box?
  • 1x Hikvision Turbo HD PTZ dome
  • Pan Tilt Zoom Security Camera
  • The heavy-duty camera on motorised base, allowing remote control of movements. Perfect for use in large spaces with moving subjects
  • 1080p Video
  • Captures footage in 1920x1080 Full HD, for clear and crisp subject detail
  • HD-TVI Format
  • Uses advanced video encoding to send both HD video and movement commands all down one simple BNC cable
  • 15x Optical Zoom
  • Lens can zoom from 54° to tiny 4° field of view
  • 100m Night Vision
  • Powerful infrared illuminators allow use in large unlit spaces such as car parks or fields
  • Privacy Mask
  • Up to 8 areas of the image can be masked out in-camera
  • Remote Control
  • Manually control camera movements either directly from a Hikvision DVR, or using a dedicated PTZ joystick controller
  • Preset Positions
  • Program the camera with up to 256 individual preset positions that can be quickly recalled
  • Patrol Patterns
  • As well as individual positions, you can program up to 10 patterns of movement between them
  • Scheduled Movements
  • Automate monitoring by scheduling regular patrol movements
  • Imaging Sensor
  • 1/2.8 CMOS
  • Maximum Resolution
  • 1920x1080
  • Frame Rate
  • 25fps
  • Minimum Illumination
  • 0.005 Lux (IR Off) 0 Lux (IR On)
  • White Balance
  • Auto Manual HAuto ATW Indoor Outdoor
    AGC Auto Manual
  • S/N Ratio
  • >52dB
  • DNR
  • 3D DNR
  • WDR
  • DWDR
  • Shutter Speed
  • 1s to 1/10000s
  • Day & Night
  • IR Cut filter
  • Privacy Mask
  • 8 Programmable
  • Focus Mode
  • Auto Semiauto Manual
  • Focal Length
  • 5 to 75mm
  • Field of View
  • 53.8 to 4 degrees
  • Minimum Working Distance
  • 10 to 1500mm (wide to tele)
  • Zoom speed
  • Approx 2.4s
  • Pan Range
  • 360°
  • Pan Speed
  • 0.1 to 80° /s
  • Tilt Range
  • -15 to 90° /s
  • Preset Positions
  • 256
  • Patrol
  • 10 programmable up to 32 positions each
  • Pattern
  • 5 Programmable
  • Power off Memory
  • Supported
  • Park Action
  • Preset Patrol Pattern Pan Scan Tilt Scan Panorama Scan Day Mode Night Mode Zero Calibration Non
  • IR Distance
  • Up to 100m
  • IR Intensity
  • Automatically adjusts with zoom ratio
  • Output
  • 1x Composite BNC 1x RS485
  • Power: 12V DC
  • Working Temperature: -30°c tot +65°c
  • Working Humidity
  • <90%
  • Protection Level
  • IP66 TVS 4000V Lightning protection
  • Dimensions
  • 164.5mm (diameter) x 295mm
  • Weight
  • 2000g
